1、概述 General introduction

本產品用于交流電力系統中，串聯在金屬氧化物避雷器下面。是用來記錄避雷器動作次數，監測避雷器泄漏電流的一種裝置。

JCQ series Online Monitor records the times of the surge arrester’s actions and monitors the arrester’s leakage current, that is in series of the surge arrester in a.c. system.

本產品內部采用優異的非線性金屬氧化物電阻片取壓，具有動作靈敏可靠，通流容量大，使用電壓等級范圍廣，外形采用不銹鋼材質，指示清晰明顯，外形美觀大方，密封性能良好等優點，尤其適用于超高壓、大容量電力系統中和強電、多雷、頻繁動作的地區使用。

The interior of the products uses the outstanding non-linear metal oxide resistance to take the pressure, has lots of merits such as the movement keenly and reliable, the current withstand to be big, the Operating voltage rating scope is broad, demonstrated clear obvious, contour elegant appearance, seal good and so on . is suitable especially for the ultrahigh voltage and large capacity power system and the local that strong electricity, the multi-thunder and the frequent action.

本產品使用條件與避雷器相同。

Using condition of this product is the same as surge arrester.

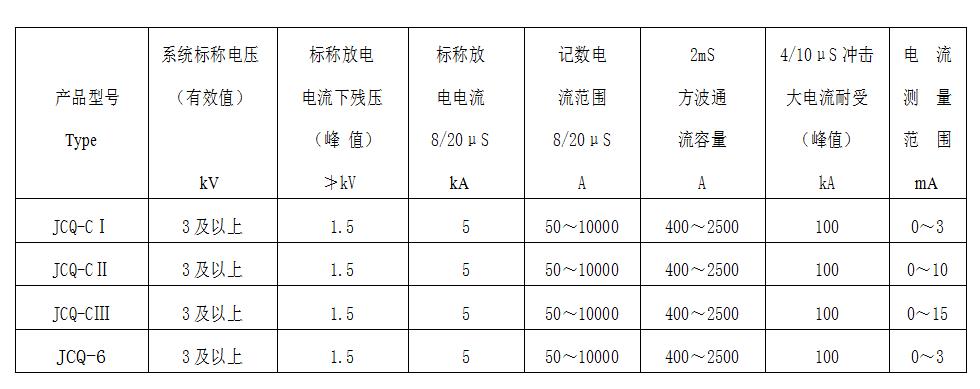

2、產品主要技術參數 Main technology parameters

JCQ-6型監測器增加了表面污穢電流的監測功能，污穢表通過避雷器外套底部安裝的屏蔽環，將屏蔽環收集的避雷器外套部的污穢電流轉化成電導率μS，污穢表表面的彩色刻度可作為變電站污穢等級的參考。

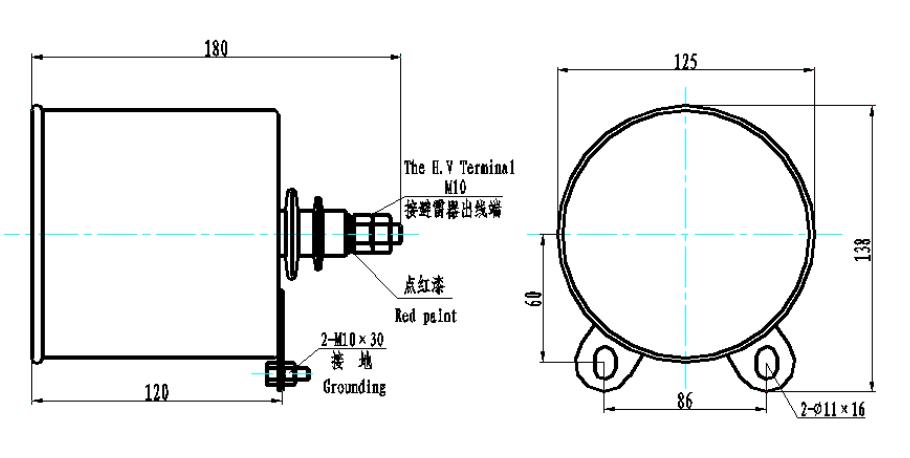

3 產品外形安裝尺寸圖 Outline installation and dimension

4 用戶須知 User notice

JCQ 系列在線監測器在投入運行前或運行 1～2 年后，應進行檢測，檢測的項目及方法如下：

The JCQ series Online Monitor should be monitored before running or after for 1~2 years, items and ways are as following:

① 用萬用表測量在線監測器高壓出線端對地之間的直流電阻，不應有短路、斷路、接觸不良現象。

Measure the D.C. resistance of the Instrument between the H.V. lead terminal and the earth with multimeter, should not exist the tendency conditions: short circuit, open circuit and the ill contact.

② 用 500V 搖表對 600V、10μF 電容器充電，用充電后的電容器對在線監測器放電，計數器應動作一次，同時在線監測器的電流表應向最大方向擺動一次。對于在線監測器應連續試驗 10 次，均能正確可靠動

作，則認為該產品動作性能良好，否則必須進行檢修。

The capacitor for 600V 10μF is charged up by megohm table for 500V, after discharging electricity to the Instrument, the Instrument should act one time, and the amperemeter should move one time. When the counter are tested continuously ten times, acting rightly and reliably, the product is thought that the performance of action is well. Or, it needs examining and repairing.

③ 檢修時，先用導線將避雷器接地端可靠接地，才能拆下在線監測器。

When examining and repairing the Instrument ,ground firstly reliably with the wires, and take down it.

④ 參照本產品外形安裝尺寸圖進行安裝，在線監測器串聯在避雷器與地之間。

Referring to mounting dimension drawings and mounting, the Instrument is in series between surge arrester and the earth.

 a. 安裝時，將在線監測器的法蘭用 M10×30 的螺栓固定在避雷器底座附近便于觀察的平視位置上，作為接地端。高壓出線端與避雷器連接。

 When installs, The flange of the Instrument is fixed by the bolts for M10×30 nearby the pedestal observed easily level, which is as the earth. The H.V. terminal and surge arrester are linked.

b. 安裝時，該產品的高壓端引線拉力不大于 10kg，涂有紅漆的螺栓、螺母不得松動，以防破壞密封。

 When mounted, the pull of the H.V. terminal down-lead is not more than 10㎏. Bolts and nuts with red can not become flexible, avoiding to destroy the airproofing.

c. 安裝后檢查在線監測器，不應有明顯的傾斜。

 Inspect the Instrument after mounting, can not incline obviously.

⑤ 用戶在訂貨時請按照標準寫清型號。如有特殊要求，請?jiān)敿?xì)提出。

 Please write the types distinctly according to the standard, when users place an order. Bring forward in detail, if having especial request.

⑥ 產品自發貨之日起，兩年內因質量問題而不能使用，我公司負責更換或維修。

Our company will replace or repair, if no using because of trouble of the quality in two years from consigning day.
